Manufacturer
Air Tractor
Model
502 B
Sale Type
For Sale
Location
Western Australia, Australia
Registration
VH-NHX
Year of Manufacturer
1999
Total Time Airframe
2,376.5
Engine Specifications
Make: Pratt & Whitney Canada Model: PT6A-34AG Serial Number: PCE-PH0193 Date Of Manufacture: 14 June 1999 Capacity: 750 sHp Time Since New: 2,376.5 Hours Time Between Overhauls: 8,000 Hours (Extension Under CASA AD/ENG 5) Total Time Remaining: 5,623.5 Hours Time Between HSI's: 1,510 Hours Time Since HSI Completed: 871.4 Hours HSI To Run: 638.6 Hours Engine Component Status Component Cycles - Life limit Cycles Remaining Hub, compressor rear 19000 17658 Disc comp. 2nd stage 24000 19848 Disc comp. 3rd stage 25000 21472 Impeller , Centrifugal 19000 15729 Disc , Compressor Turbine 16000 12316 Disc , Power Turbine 24000 21895 Component Life limit Remaining Fuel Pump, HP 4,500 Hours 4,467.1 Hours FCU 4,500 Hours 4,467.1 Hours
Propeller Specifications
Propeller Make: Hartzell Model: HC-B3TN-3D Hub Serial Number: BUA22054 Blade Serial Number: J26766 Blade Serial Number: J26768 Blade Serial Number: J26769 Date Of Manufacture: 29 March 1999 Time Between Overhauls: 3,000 Hrs or 10 Yrs Time Since Overhaul: 298.7 Hours Total Time Remaining: 2,701.3 Hours Date Of Overhaul: 17 August 2018 Date Due Overhaul: 17 August 2028

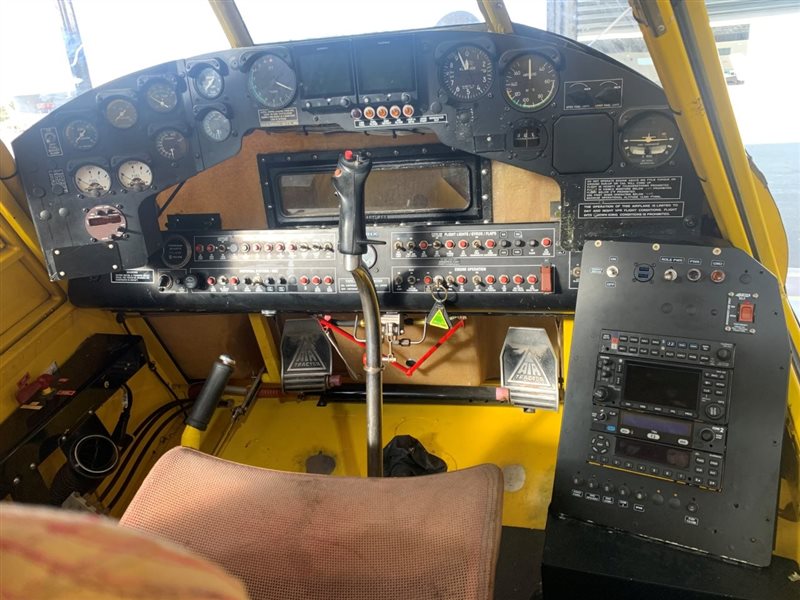

Avionics
VHF/Comm: Trig Avionics TY96A Nav/Comm/GPS/VOR: Garmin GNS 430 Audio Panel: Garmin GMA 350C Transponder: Garmin GTX 335 (Mode S) HSI / DG: Garmin G5
