2026 Homebuilt DooMaw – 80% Complete eLSA Project
$AUD27000
A distinctive Alaskan-style STOL bush-plane project for someone looking to finish a highly capable, purpose-built off-field aircraft.
The DooMaw has been designed around rugged bush operations, with long-travel landing gear, large balloon tyres, generous ground clearance, five-stage flaps and Handley Page slots. The project is approximately 80% complete, with the seller estimating around 200–300 hours of work remaining.

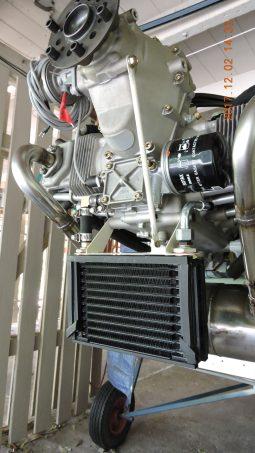

Included is a Rotax 912ULS 100 hp engine that the seller states has never been run. The engine is approximately 12 years old, has been fogged with its ports kept sealed, and will require inspection and rubber replacement before use.
A notable feature of the design is its folding-wing system, allowing the wings to fold flat alongside the fuselage for compact storage or transport. The project may also be completed with fixed wings if the folding system is not required.
The build has involved approximately 1,900 hours of work to date and is extensively documented, with more than 600 high-resolution build photos reportedly available from the seller.
Features & Equipment
- Fully TIG-welded 4130 chromoly airframe
- Fuselage, fin and rudder completed
- Folding horizontal stabiliser with bracing cables and locking mechanism
- Elevators with trim tab
- Rotax 912ULS 100 hp engine
- Bolly gold-anodised propeller hub
- Three carbon-fibre adjustable-pitch 72-inch propeller blades
- Spinner
- Tall long-travel landing gear
- Tailwheel
- Five-stage flap control
- Adjustable rudder pedals
- Throttle and fuel tank installed
- Stainless-steel firewall
- Forward fuselage aluminium panels primed and drilled for riveting
- Stits Poly-Fiber covering materials
- Impact-absorbing seat system
- Seat cushions, upholstery and headrests
- Four-point ex-military harnesses
- Analogue instrument panel
- Mini tablet mount
- Fuel sight gauge
- 2¼-inch Becker VHF transceiver
- Two antennas
- Exhaust
- Oil tank
- Oil cooler
- Airbox, not currently fitted
- Radiator
- Differential hydraulic Black Max toe brakes on both sides
- 6-inch wheels
- 22-inch balloon tyres
- Machined components for folding-wing mechanism
- 4130 wing torque-tube material, bushings and fittings
- 6061-T6 main-spar material
- Solid rivets
- 6061-T6 streamlined wing-strut extrusions
- Machined articulated wing-strut ends
- Assorted AN hardware, tubing, bushings, bearings and hinges
- New AN bolts sufficient to complete the project, with surplus
- Build documentation from commencement of the project
- Large aluminium-skinned registered box trailer with new tyres
The seller notes that the chromoly structure had previously been protected with sprayed epoxy. Some minor surface-rust marking is present, and the seller recommends disassembly, light sandblasting and consideration of powder coating before completion.
This is a custom-built aircraft rather than a kit project, and the seller advises that the purchaser should have appropriate fabrication skills and some aircraft-design knowledge.
Key Points
- Approximately 80% complete STOL aircraft project
- Around 1,900 hours invested in the build to date
- Seller estimates approximately 200–300 hours required to complete
- Never-run Rotax 912ULS 100 hp engine included
- Folding-wing design for compact hangar storage or transport
- Long-travel landing gear and 22-inch balloon tyres
- Extensive build documentation and photo history
- Registered aluminium-skinned box trailer included
Location
Mourilyan Harbour, QLD
Registration
Not Registered
Year of Manufacturer
2026
Engine Specifications
Rotax 912ULS, 100 hp; approximately 12 years old and never run. Seller states engine has been fogged and ports kept sealed. Inspection and rubber replacement required.
Propeller Specifications
Bolly gold-anodised hub with three carbon-fibre adjustable-pitch 72-inch blades and spinner
Avionics
2¼-inch Becker VHF transceiver with two antennas; analogue instrument panel and mini tablet mount
